MTP Connector Compliance

IEC 61754-7, TIA 604-5, RoHS

LC Connector Compliance

IEC 61754-20, TIA 604-10-A, RoHS

Base-12

12 Fibers

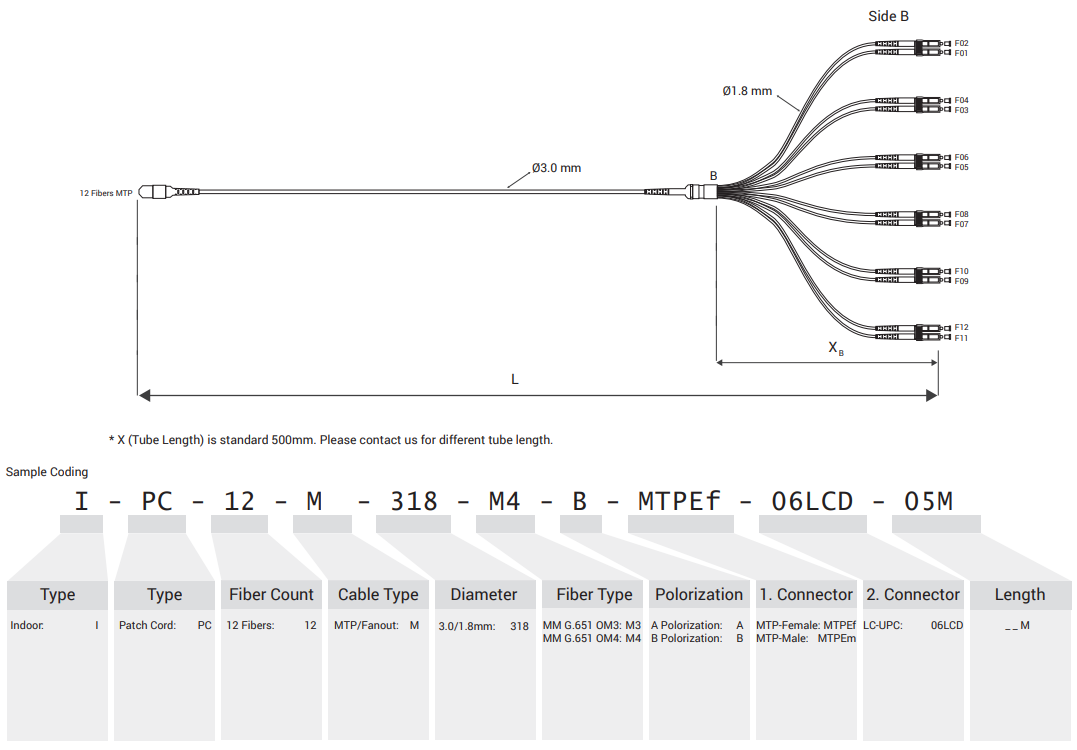

Cable Diameter

3.0mm

Subunit Diameter

1.8mm

Alignment Technology LC Side

Full ceramic ferrule (Zirconia ZrO2)

Operating Temperature

-10°C to +70°C

Flammability

UL94 V-0

Durability (MTP/LC)

> 100/1000 mating cycles

Transmission with Applied

Tensile Load

50 Newton

Insertion Loss: IEC 61300-3-4-MB

MTP≤0,35dB (avg: 0,1dB); LC≤0,4dB

Return Loss: IEC 61300-3-6-MB

MTP: ≥20dB; LC: ≥40dB

Connector End Face Geometry

IEC 61755-3
