LC Connector Compliance |
IEC 61754-20, TIA 604-10-A, RoHS |
|
SC Connector Compliance |
IEC 61754-4, TIA 604-3, RoHS |
|
Fiber Count |
2 Fibers |
|

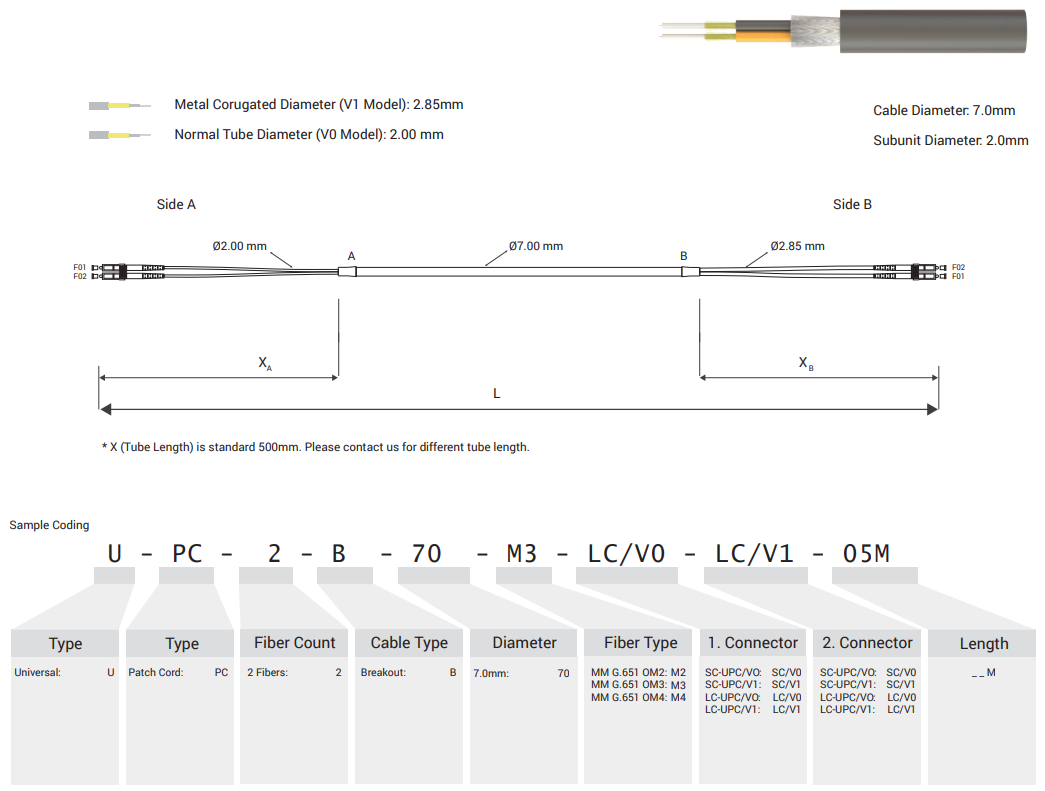

Cable Diameter |
7.0mm |
|
Subunit Diameter |
2.0mm |
|
Alignment Technology |
Full ceramic ferrule (Zirconia ZrO2) |
|
Operating Temperature |
-40°C to +85°C |
|
Flammability |
UL94 V-0 |
|
Durability |
>1000 mating cycles |
|
Transmission with Applied Tensile Load |
GR-326 CORE 4.4.3.5 |
|
Insertion Loss: IEC 61300-3-4-MB |
Multimode: ≤ 0.40dB |
|
Return Loss: IEC 61300-3-6-MB |
Multimode: ≥ 40dB |
|
Connector End Face Geometry |
IEC 61755-3 |
