Item

Qty.

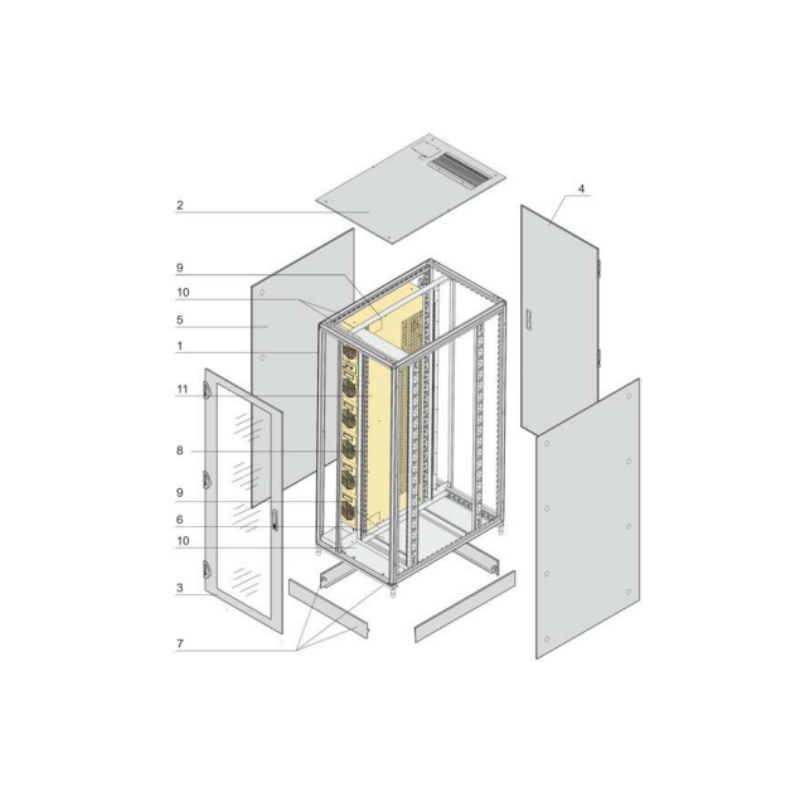

Description

1

1

Welded basic frame, Slim-Line, St profile, zinc-plated, RAL 7021, with gasket all around

2

Flat roof, St, RAL 7021 with cable entry point in rear with brush, entry point for water connection in rear, entry points can be sealed with a gasket/cover plate

3

Front door glazed, St frame, RAL 7021, single-pane

safety glass 6 mm, 3 x 180° hinge, three-point closure, pivoting lever handle for optional DIN profile half

4

Rear door, St, RAL 7021, 3 x 180° hinge, three-point closure, pivoting lever handle for optional DIN profile half cylinder

5

2

Side panel, screwed, St, RAL 7021

6

Baseplate, St, RAL 7021 with cable entry point in rear with brush, entry point for water connection in rear, entry points can be sealed with a gasket/cover plate

7

Base/plinth 100 mm, with additional center crossmember, St, RAL 7021, removable covers, integrated adjustable feet

8

4

19" panel/slide mount with EIA cut-outs, St, RAL 7021, 225 mm recessed in front, c dimension 740 mm distance between front and rear 19" plane

9

2

Support rail for connecting the air/water heat exchanger and 19" panel/slide mounts, St, RAL 7021

10

4

Air baffle, St, RAL 7021

11

1

SHX 30 air/water heat exchanger, RAL 7021, 100 to 240 VAC, may be mounted on the left or right, see Order Information

12

1

Power cable, length 1.5 m

13

1

Connecting cable for management unit

Height U mm

Width mm

Depth mm

Heat Exchanger

Water connection

Power supply

Part no.

42 2100

800

1200

Left

Bottom

1

C8218-800

42 2100

800

1200

Right

Bottom

1

C8218-801

42 2100

800

1200

Left

Top & Bottom

2

redundant

C8218-802

42 2100

800

1200

Right

Top & Bottom

2

redundant

C8218-803

Accessories

Lifting eye for top cover PU 4 pieces

C8460-479

Electronic closing (MLR3000), 13.56 MHz-With reader, 1 set

C8460-428

Electronic locking (MRL3000), With reader, 1 set

C8460-430
