CopperOn CS400 Uninterruptible Power Solutions is a modular on-line UPS system with a high operating AC/AC efficiency and compact footprint. The system is designed to protect critical data and IT infrastructures with the ultimate on-line power protection.

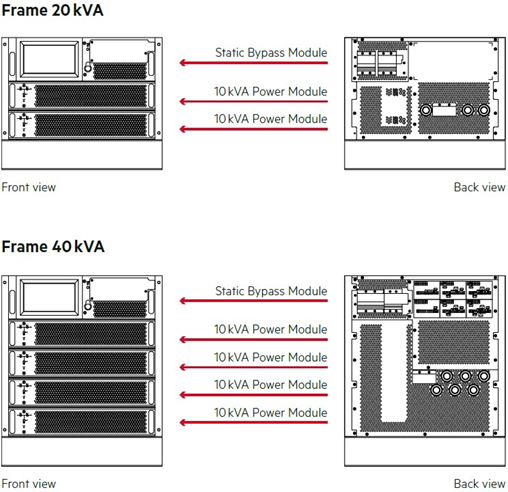

CopperOn CS400 is based on a 2U high 10 kVA/kW power module that can be housed in one of two frame sizes (20 kVA or 40 kVA) providing up to 40 kVA maximum capacity or 30 kVA N+1 configuration. Up to 4 frames can be operated in parallel for additional resilience or capacity.

The 20 kVA and 40 kVA frames can be installed into a 19-inch cabinet. (1000 mm deep and weight dependent). The batteries are housed in a separate battery cabinet.

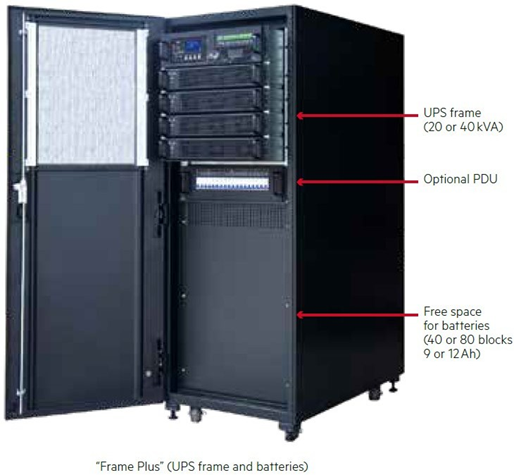

The Frame Plus provides a self-contained solution. The standard Frame Plus provides space for a 20 kVA or 40 kVA frame and internal battery shelves. Longer runtimes can be achieved using external battery cabinets.

CS400 has one of the lowest Total Cost of Ownership (TCO) factors in its class. The operating efficiency in on-line mode is up to 95 % and 98 % in Eco Mode. The UPS delivers up to unity-power factor and the system can be configured for 1/1, 3/1 or 3/3 input/output connections at installation.

Features

• Up to 95 % operating efficiency. (on-line mode)
• Up to 98 % operating efficiency. (Eco Mode)
• 10 kVA ‘hot-swappable’ Power modules. (2U high)
• 20 and 40 kVA UPS frame sizes.
• Parallel up to 4 frames for additional resilience.
• UPS modules incorporate ‘idle mode’ and cyclic operation.
• Output PF up to unity.
• Phase configuration options 1/1, 3/1 and 3/3.

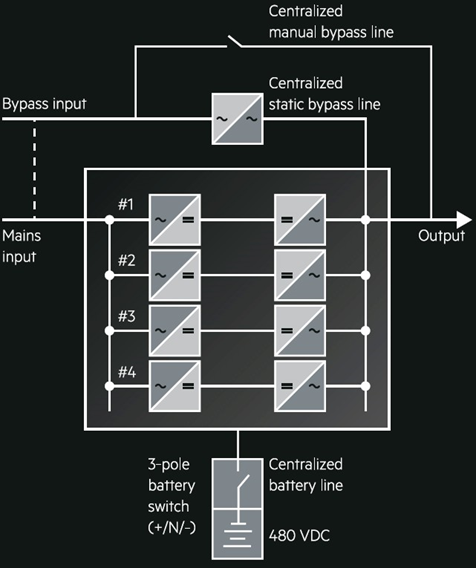

• Centralized static and manual bypass lines.
• Centralized battery connection.
• Built-in ‘Intelligent Test Mode.

CopperOn CS400 is designed to provide stable and secure power for very demanding applications with either a 100 % step load change, unbalanced or non-linear IT-type loads.
The UPS also provides exceptional performance with a Unity-rated output power factor when protecting leading or lagging power factor loads.
The modular architecture allows up to four power modules to be connected in parallel in a single frame cabinet (40 kVA). With an operating efficiency up to 98 % (Eco Mode), CS400 is one of the most eco-friendly UPS systems available today.

Benefits

• Green Modular Scalable UPS.
• Double Conversion (VFI-SS-111).
• Modular design with N+X built-in redundancy.
• Transformer-less architecture.
• Power capability up to 40 kVA.
• 10 kVA power modules (2U height each) with independent LED status indications.
• Hot-swappable modules.
• ECO Mode up to 98 % efficiency.
• Idle Mode, to increase operating efficiency, even with low % of load.
• Output PF up to 1.
• Frequency converter mode.
• 7" color Touch Screen graphic display.
• Built-in ‘Intelligent Test Mode.’
• Centralized (static and manual) Bypass Module.
• Centralized (external) battery connection.
• Parallel capability up to 4 units.

Easy Installation, Operation & Maintenance

The CS400 can be configured as a 1/1, 3/1 or 3/3 phase system upon installation. The 7" LCD touchscreen built into the frame’s front panel provides access to a range of operating information for the entire UPS system as well as each individual power module including, historical logs, alarms, operating parameters, load and electrical system measurements.

The power modules can also be accessed from the front of the frame for easy removal and inspection.

The Mean Time To Repair (MTTR) is significantly low thanks to the hot swappable architecture. The models are held in place by four screws and slide into/out of their position in the UPS frame. Bottom and top cable entry are available for the frames.
