The closure is widely used to connect and branch fiber optic cables in aerial, underground, and direct buried applications. The closure ports adopt fully mechanical sealing methods. The ambient temperature ranges from -40°C to 70°C.

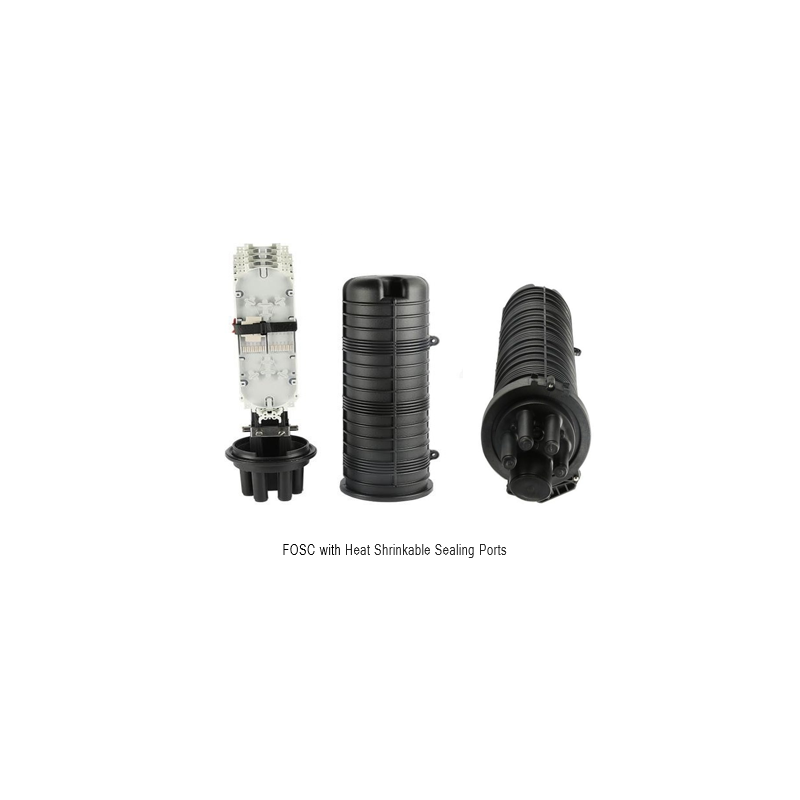

Fiber optic splice closure is single-ended and environmentally sealed to provide the functions of splicing and passive component integration in outside plant (OSP) applications.
It is equipped for all cable termination and sealing requirements. The base and dome are sealed with a clamp and an O-ring system. One or two oval entry ports for looped (uncut) cable and six, eight or eighteen round ports for drop cables are provided in the base. Uncut loose buffer tube storage space is available between the two stacks. Depending on the installation conditions, suitable cable sealing kits are available.
The closure is widely used to connect and branch fiber optic cables in aerial, underground, and direct buried applications. The closure ports adopt fully mechanical sealing methods. The ambient temperature ranges from -40°C to 70°C.
Fiber optic splice closure is single-ended and environmentally sealed to provide the functions of splicing and passive component integration in outside plant (OSP) applications.
It is equipped for all cable termination and sealing requirements. The base and dome are sealed with a clamp and an O-ring system. One or two oval entry ports for looped (uncut) cable and six, eight or eighteen round ports for drop cables are provided in the base. Uncut loose buffer tube storage space is available between the two stacks. Depending on the installation conditions, suitable cable sealing kits are available.
|
Parameter |
Heat Shrinkable Sealing Types |
Mechanical Sealing Types |
|
Dimensions (Height x Diameter) |
540 × 205 mm |
420 x 235 mm |
|
Weight |
3000g~3600g |
2350g ~ 3500g |
|
Number of Ports |
4 (Other port counts available) |
6 (Other port counts available) |
|
Diameter of Fiber Cable |
Ø8mm～ Ø36mm |
Ø 8mm～Ø 20 mm |
|
Splicing Capacity |
Bunchy:24~96 (cores), Ribbon: up to 288 (cores) |
Bunchy: 24~144 Cores, Ribbon: up to 432 Cores |
|
IP Rating |
IP68 |
|
|
Part No. |
Description |
|
FTM-FOSC-24FM |
Fiber optic splice closure with mechanical sealing ports, up to 24 fibers splicing capacity, IP68 |
|
FTM-FOSC-48FM |
Fiber optic splice closure with mechanical sealing ports, up to 48 fibers splicing capacity, IP68 |
|
FTM-FOSC-144FM |
Fiber optic splice closure with mechanical sealing ports, up to 144 fibers splicing capacity, IP68 |
|
FTM-FOSC-24FH |
Fiber optic splice closure with heat shrinkable sealing ports, up to 24 fibers splicing capacity, IP68 |
|
FTM-FOSC-48FH |
Fiber optic splice closure with heat shrinkable sealing ports, up to 48 fibers splicing capacity, IP68 |
|
FTM-FOSC-144FH |
Fiber optic splice closure with heat shrinkable sealing ports, up to 144 fibers splicing capacity, IP68 |
* Other capacities and configurations are available upon request.
