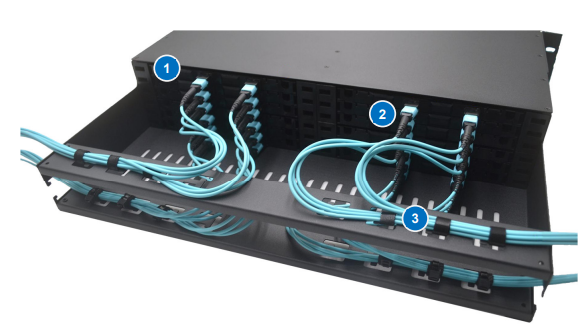

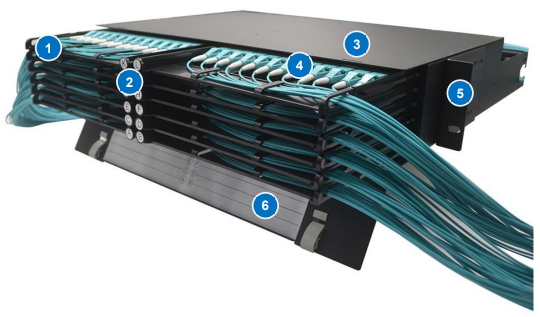

High density unique design patch panel, with maximum LC connectivity and cabling, adopt the high-strength environmental light weight material and superior surface treatment technique, which make the panel achieve complete function with various flexible cabling solutions.
|

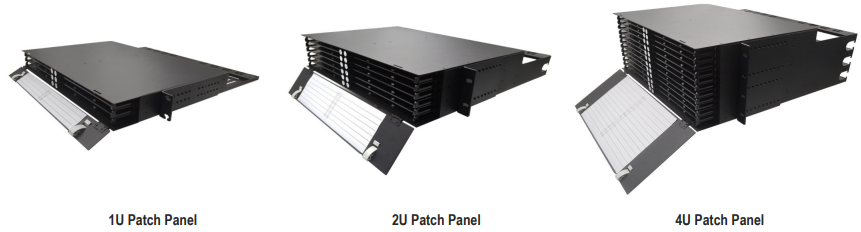

Patch Panel Type |
1U Patch Panel |
2U Patch Panel |
4U Patch Panel |
|
Capacity |
72F SC |
144F SC |
288F SC |
|
144F LC |
288F LC |
576F LC |
|
|
288F MDC (2-Port Adapters) |
576F MDC (2-Port Adapters) |
1152F MDC (2-Port Adapters) |
|
|
432F MDC (3-Port Adapters) |
864F MDC (3-Port Adapters) |
1728F MDC (3-Port Adapters) |
|
|
Cassette Quantity |
6 |
12 |
24 |
|
Fan-out Cables/Patch Cords |
MPO/MTP-MDC/LC/SC Fan-out Cables or MDC/LC/SC Patch Cords |
||
|
Dimensions |
435 x 460 x 44 mm |
435 x 460 x 88 mm |
435 x 460 x 176 mm |
|
Weight (including cassettes) |
3.7 kg |
6.4 kg |
11.2 kg |
|
Operating Temperature |
-20°C to +60°C |
||
