In this combination, an active heat exchanger integrated into an 800 mm wide cabinet has the lowest space requirement on the market. The closed system reduces the noise level and controls itself by means of the thermal load. With a cooling capacity of up to 34 kW1), the heat exchanger is suitable for HPC applications. Multiple cabinets can be mounted side-by-side to create a closed system. Thanks to the low space requirement, reduced noise level and ease of creating redundancy, this heat exchanger is well suited also for medium-sized data centers.
|
Integrated Heat Exchanger |
|
|
Cooling capacity |
Up to 34 kW1) |
|
Dimensions |
Width 800 mm Height 2100 mm Depth 1000 to 1200 mm |
|
Functions |
IP 55 protection on request EMC design on request 1600 kg static load capacity Bottom/top water connections Control system options with an external temperature sensor. |
|

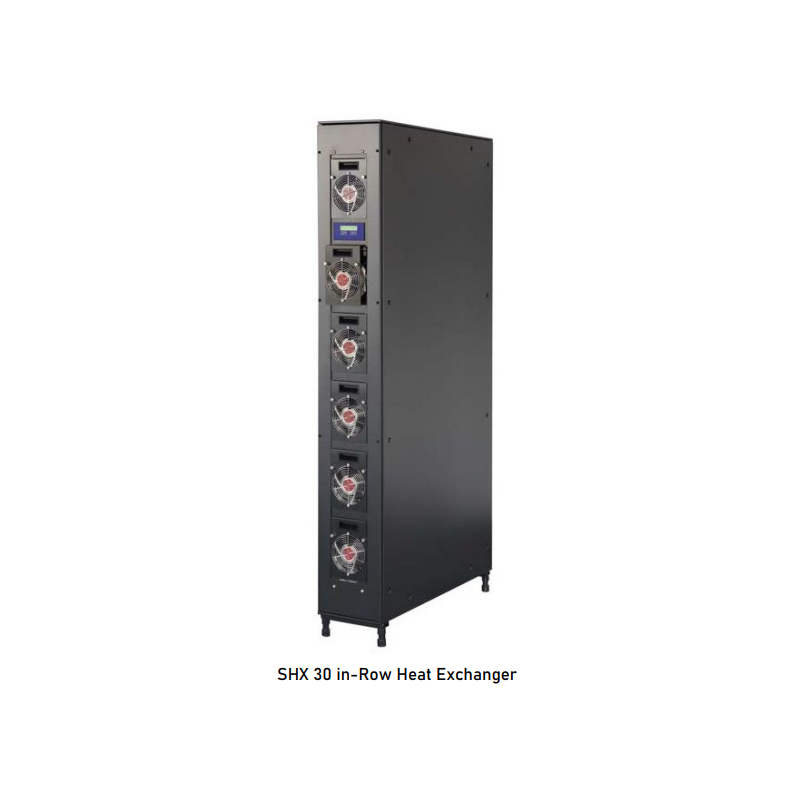

In-Row Heat Exchanger |
|
|
Cooling capacity |
Up to 34 kW |
|
Dimensions |
Width 300 mm Height 2000 to 2200 mm Depth 1000 to 1200 mm |
|
Functions |
Water connections from bottom/top Control system options with an external temperature sensor Display in four languages |
|
1) Cooling capacity 34 kW at +12 °C water flow temperature, +24 °C cold air temperature, 4.5 m³/h water flow rate; for other conditions refer to the diagram for the cooling capacity |
|
Active Text heat exchanger for containment systems with a cooling capacity of up to 34 kW1). This in-row heat exchanger is mounted side-by-side to cabinets within the aisle containment. This enables optimal scalability regarding planning for the cooling capacity and the redundancy of the system.
