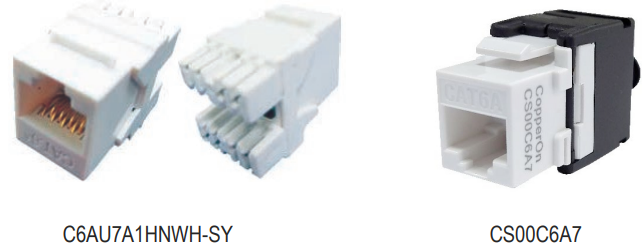

Specifications

• 10Gb/s performance meeting or exceeding all performance requirements of Category 6A (Augmented Cat. 6) standard
• Hardware certified of complying with TIA/EIA-568B.22-1 Cat. 6A by third party
• Meets termination requirements jack with 3-50 micro inch gold plating over nickel
• Insertion Life: 750 cycles minimum UL listed
• Enhanced PC designed technology provides reliable performance

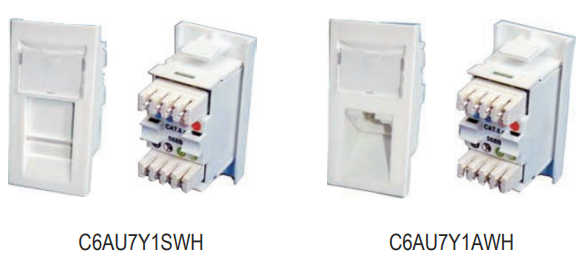

UK Modules

Specifications

• Meet Augmented Category 6 performance standards
• Exceeds all ANSI/TIA/EIA-568B 2-10 Category 6A and ISO/IEC 11801 class EA component standard requirements at swept frequencies up to 500 MHz
• With ID station label
• Shutter type and without shutter type
• IDC block: LSA block
• Wiring: EIA/TIA 568B
