• Ensure Uptime
• Enjoy Flexibility
• Automate your Infrastructure Management.

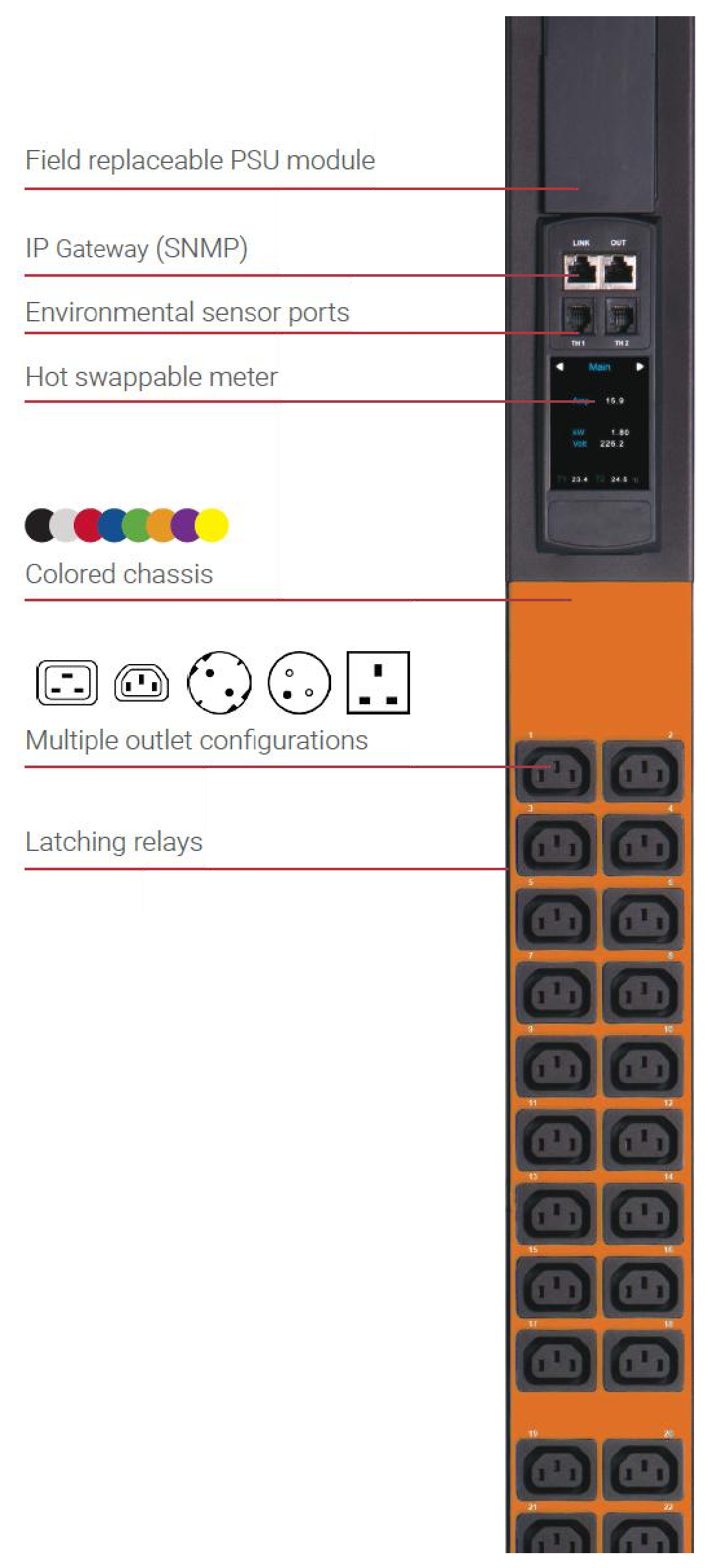

Smart Rack Power

• PDU’s with digital 2.8” local touchscreen display and IP network connectivity.
• All data you need with a metering accuracy within +/-1%:
• Current (AMP), voltage (Volt), power (kW), energy consumption (kWh) and power factor of the entire PDU.
• Hot-pluggable meter and field replaceable PSU.
• Single and three phases supporting regional voltages.

Smart Environmental Monitoring & Security

• Full range of Automatic Transfer Switches. (ATS)
• Rack Power Manager Software delivers a centralized remote management platform for the PDUs in multiple IP-access groups.

IP Gateway (SNMP)

Hot pluggable IP Gateway provides IP remote access to the PDUs using a single IP address chain. Only one IP Gateway is required to access a maximum of 16 PDUs in a daisy chain reducing data ports and network IP addresses.

Hot swappable meter

Field replaceable RMS current meter with 2.8” color LCD display with touch screen functionality.

Colored chassis

A simple way to enhance cable management and visualization of the power sources. Allows differentiation of primary and redundant power feeds (A & B) if required.

Protection

Thermal resettable fuse or circuit breakers.

Bottom Power Feed Entry

In single and three phases with country specific voltages. Customization to top feed entry is available on request.

Dual Power Feed PDU

Single phase range with one chassis, two power feed and color coded outlets.

Multiple outlet configurations

Multiple outlet configurations per each individual PDU. C13, C19, all types of sockets available.

Latching Relays

Socket switching is controlled via bistable/latching relays. It keeps outlets up and running with no power.
