Connection

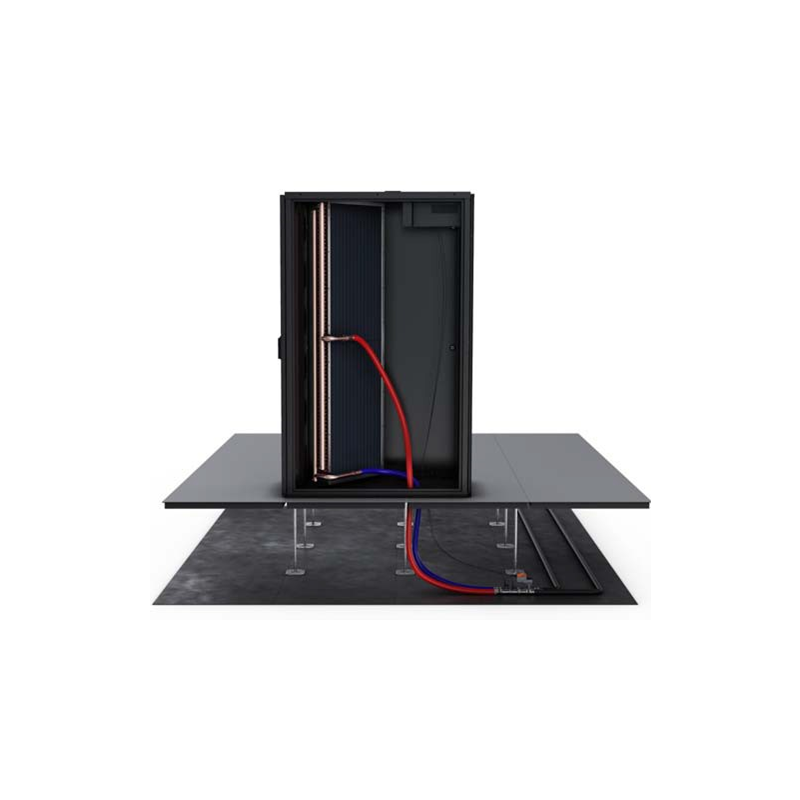

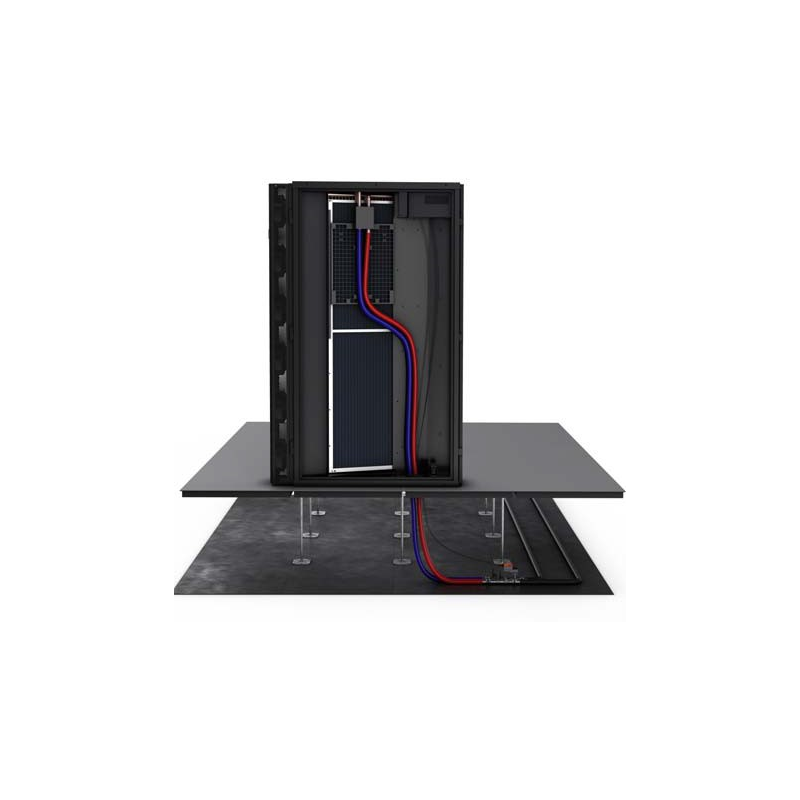

Water connection at top or bottom

Max. airflow volume

7200 m3/h

Dimensions heat exchanger

Height 2000 mm, width 300 mm, depth 1200 mm; width 600 mm, depth 1200 mm plus 170 mm radial fan overhang

Supply voltage (1-phase) nominal voltage)

100 ... 230AC (50/60 Hz, dual supply

Input / sensor

Connection for external temperature sensor

Adjustment range air outlet temperature

18 ... 30 °C (in 0,1 °C-steps)

Cooling capacity at 14° C water inlet, flow 4,2 m³ / h; Room temperature 22-24 ° C

300 mm width 55 KW; 600 mm width 75 KW

Cooling medium *)

Water, water-glycol mixture (max. 33%)

Water inlet temperature **)

>14 °C

Water flow volume

up to 4,6 m3/h

Water conduit

Copper

Water connection inlet / outlet

Female cone / BSP 1"

Control valve

1" Rp, 24 VDC, connected to the central monitoring system

Water volume

11 L

Max. Current consumption

6 A (230 VAC)

Pre fuse (on building side)

D10 A

RJ 45 Interface

Monitoring via Modbus or Ethernet interface

Ambient temperature during transport

Transport, storage when fully emptied / when containing 35% glycol / in operation outside cabinet: -25 ... 70 °C / 5 ... 70 °C

Relative humidity

5 ... 95 %

Weight heat exchanger

140 kg (without water)

General Data

Protection class of the cabinet

IP 55

Ambient temperature outside the cabinet (during operation)

5 ... 70 °C

Sound pressure level (cabinet closed) at 80% fan power

50,7 dB(A)
