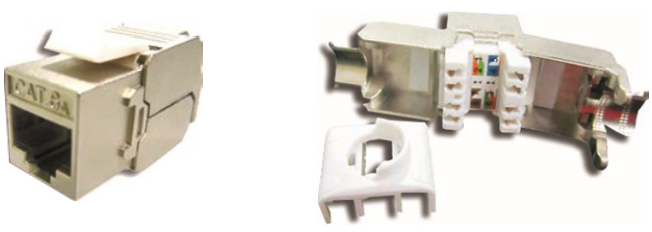

Slim Type Toolless Keystone Jacks

180° Cat. 6A shielded die-casting keystone jack is designed to fully achieve the component standard of ISO/IEC 11801. Extra 30% permanent link headroom margin guaranteed compared to traditional Cat. 6A products and links, and it is also the best choice to support IEEE 802.3an 10G applications.

Specifications

• Conform to TIA/EIA-568.C.2, ISO/IEC 60603-7-51 and EN 50173-1 class EA specifications
• Die-casting design for optimal EMI protection
• Slim size is ideal for interfaces where the spaces are tight
• Real ISO/IEC 11801 and EN 50173 short link performance guaranteed
• Multi-nodes consolidation cord, reliable end to end solutions, and high data traffic applications
• Compact design and standard size fit in keystone style faceplate ports
• Compatible with keystone modular patch panels for data centers or cross connect use
• RoHS compliant

Toolless Keystone Jacks

Specifications

• 10Gb/s performance, meeting or exceeding all performance requirements of the Category 6A (Augmented Cat. 6) standard
• Hardware certified of complying with TIA/EIA-568B.22-1 Cat. 6A by third party
• Meet termination requirements with 3-50 micro inch gold plating over nickel
• Insertion Life: 750 cycles minimum, UL listed
• Enhanced PC designed technology provides reliable performance
