Tight-Buffered Distribution Cables

Home
Fiber Products

Tight-Buffered Distribution Cables

Description

Features & Benefits

2-48 Fiber Count (Other fiber counts are available)
900µm Tight Buffered Construction
LSZH, PVC, Plenum OFNP, Riser OFNR Jacket Options Tight-Buffered Fiber
RoHS Compliant

Applications

FTTX Networks
Riser/Backbone/Data Center Cabling

Standards

ITU.T G.652.D, G.657.A, G.657.B, G.651.1
ANSI/TIA-568-C.3, ISO/IEC 11801
IEC 60793, IEC 60794
IEC 60332-1-2, IEC 60754-1,2 & IEC 61034-2

Environmental Characteristics

Installation -10° to +50°C
Operation -20° to +60°C
Transport and Storage -20° to +60°C

Mechanical Specifications

Cable Bending Radius	Min. Bend Radius (Dynamic)	20D
Cable Bending Radius	Min. Bend Radius (Static)	10D
Crush Resistance	Long Term	300
Crush Resistance	Short Term	100

Fiber Characteristics

Cable Type	Singlemode (G.652.D)		OM1		OM2		OM3		OM4
Wavelength (nm)	1310	1550	850	1300	850	1300	850	1300	850	1300
Attenuation (dB/km)	≤0.4	≤0.3	≤3.0	≤1.0	≤3.0	≤1.0	≤3.0	≤1.0	≤3.0	≤1.0

Physical Specifications

Fiber Count	Weight (Kg/km)	Tensile Strength (N)		Overall Diameter (mm)
Fiber Count	Weight (Kg/km)	Long Term	Short Term	Overall Diameter (mm)
2	15	200	400	4.0
4	18	200	400	4.9
6	23	300	600	5.2
8	27	300	600	5.5
12	36	300	600	6.2
24	65	300	600	8.5
48	110	400	800	10.5

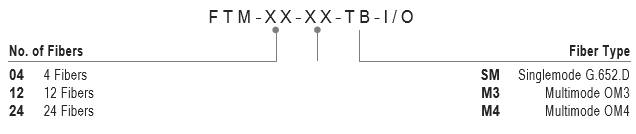

Ordering Information

Example

Part No.	Description
FTM-48-SM-TB-I/O	Fiber optic tight-buffered distribution cable, 48 fibers, singlemode G.652.D, aramid yarn strength members, LSZH, yellow

^* Other cable designs and specifications are available upon request
