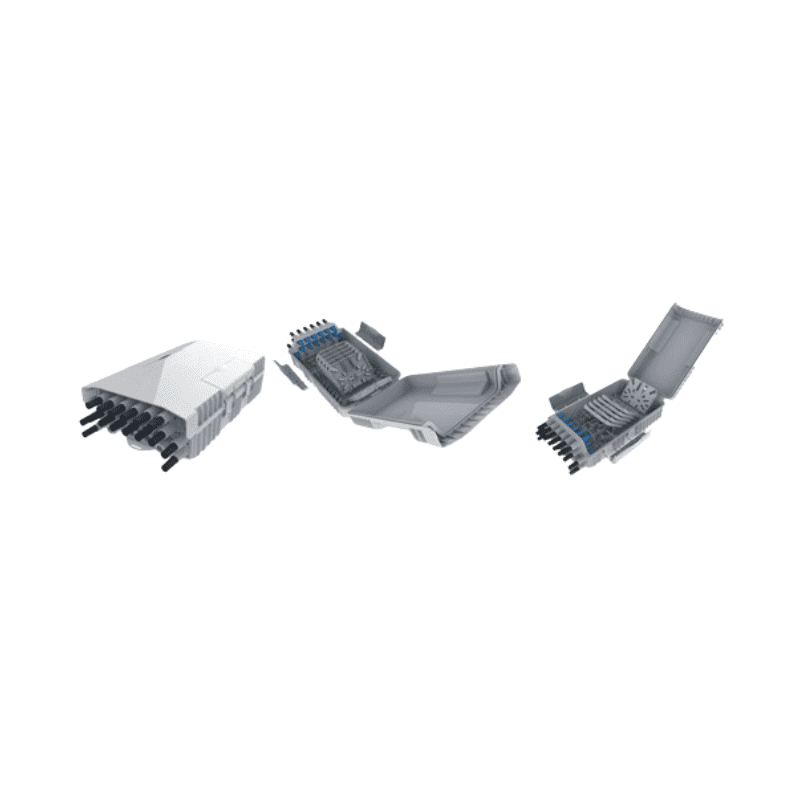

The equipment is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting ,distribution can be done in this box,and meanwhile it provides solid protection and management for the fttx network building Can be used indoor or outdoor .

Features:

• Total enclosed structure
• Material:PC+ABS, wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65
• Clamping for feeder cable and drop cable, fiber splicing, fixation,storage,distribution…etc all in one
• Cable, pigtails , patch cords are running through own path without disturbing each other ,cassette type SC/LC/PLC adaptor installtion ,easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
• Cabinet can be installed by the way of wall-mounted,suitable for both indoor and outdoor uses.

Specification

1. Environmental requirement

• Working temperature:-40℃～+85℃ Relative humidity: ≤85%（+30℃）Atmospheric pressure: 70KPa～106 KPa

2. Main technical datasheet

• Insertion loss: ≤0.2dB
• UPC return loss≥50 dB
• APC return loss≥60 dB
• Life of insertion and extraction: >1000 times

3. Thunder-proof technical datasheet

• The grounding device is isolated with the cabinet, isolation resistance is less than 2×104 MΩ/500V(DC); IR≥2x104MΩ/500V
• The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no punctre,no flashover;U≥3000V

Specifications may change without notice. Display Product Photos Shown are samples for viewing, not actual products. Colours and styles may vary.

Model and configuration
