• Static load-carrying capacity at full extension 30 kg.
• Mounting height 1 U, for mounting on four 19" panel/slide mounts.
• Incl. telescopic slides.
• Hammer head perforation to fix cable ties.
• 2 versions:
• Full depth.
• Depth shortened by 100 mm for rear cable ducting.

Delivery Includes

Order Information

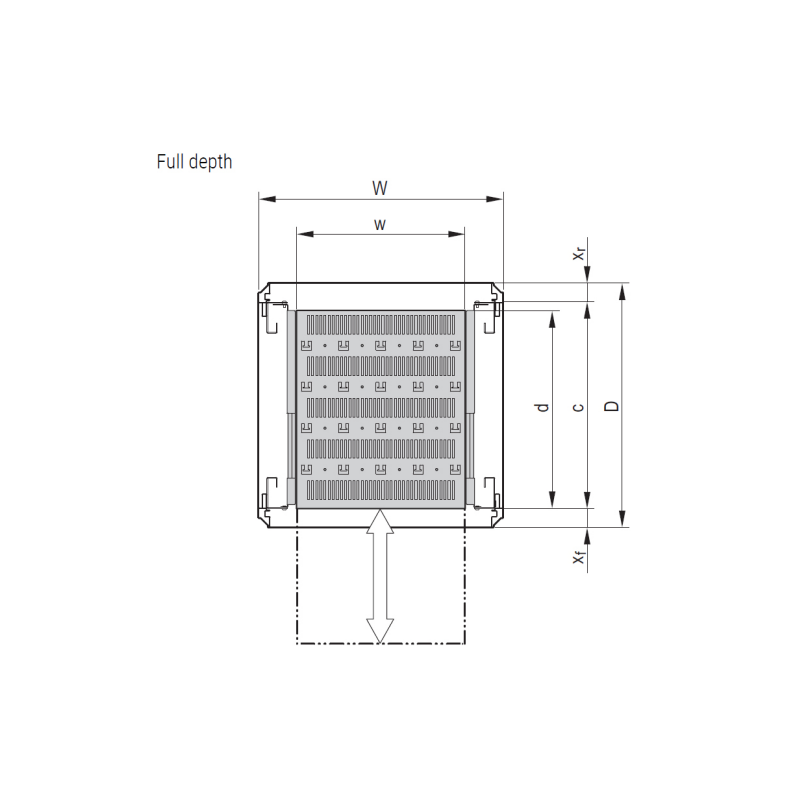

Full depth

For cabinet depth mm	Usable surface w x d mm	xf mm	C mm	RAL 7035 Part No.	RAL 7021 Part No.
600	417 x 482	50	500	27820-656	27820-646
800	417 x 482	150	500	27820-657	27820-647
GND/earthing for telescopic 19" shelf PU 1 kit.					27800-622

Order Information

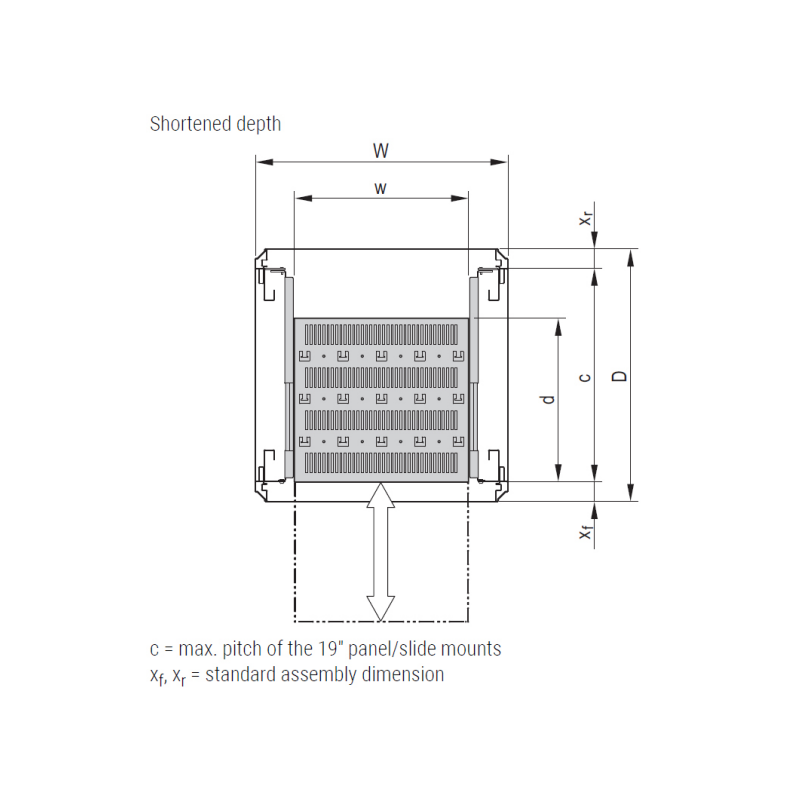

Shortened by 100 mm

For cabinet depth mm	Usable surface w x d mm	xf mm	C mm	RAL 7035 Part No.	RAL 7021 Part No.
600	417 x 382	50	500	27820-110	27820-219
800	417 x 382	150	500	27820-111	27820-221
GND/earthing for telescopic 19" shelf PU 1 kit					27820-223
