CopperOn

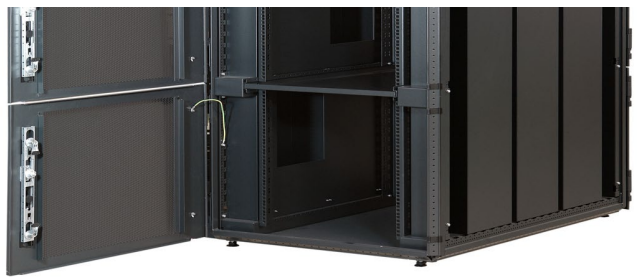

CopperOn Colocation cabinets with 2, 3 or 4 divider units to accommodate servers, for example.
Perforated doors (airflow rate 78%)

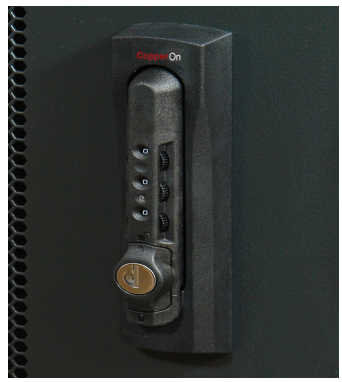

Multi-point door locking to prevent unauthorized access (Lever handle with key and numeric code)
Access to false floors and cabling only from the appropriate divider unit.

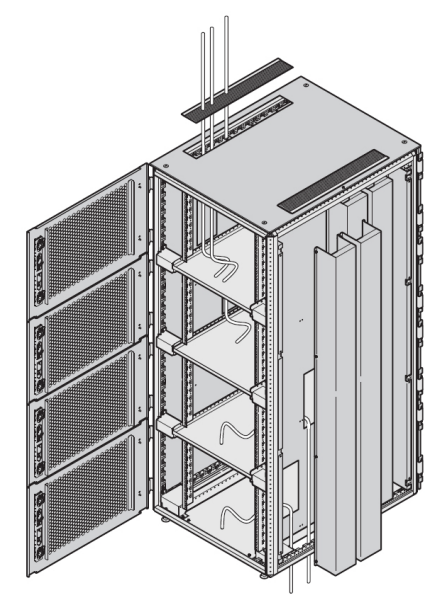

Flexible cabling, possible from above, below, left or right (data and power cables can be run separately)
Protection class IP 20
Available in three color schemes
Stone gray RAL 7021
Light grey RAL 7035
Signal white RAL 9003

Delivery Includes (Completely assembled and earthed)

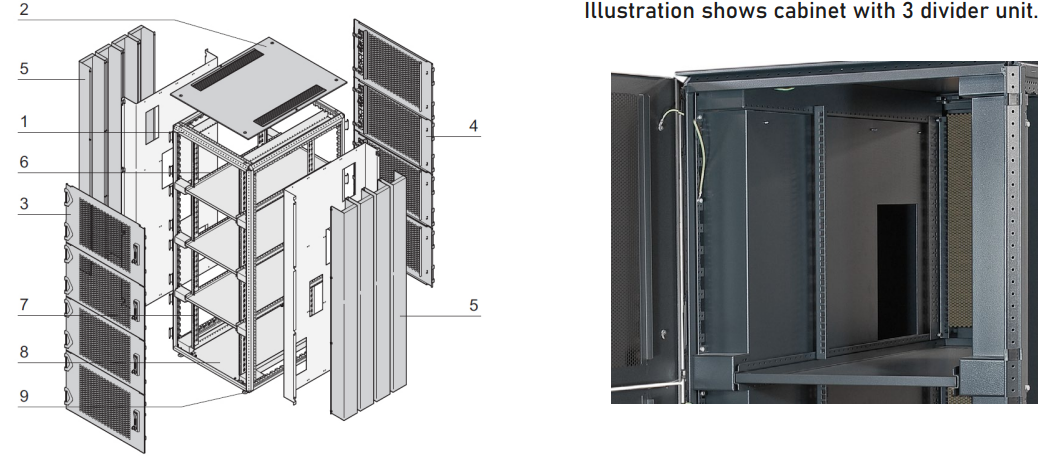

Item	Qty.	Description
1	1	Welded basic frame (Slim-Line) from steel profiles, RAL 7021
2	1	Flat top cover, St, RAL 7021, with brush strip (left and right)
3	1 per divider unit	Front door, frame St, perforated, 180° hinge, 2-point locking and lever handle (key and numeric code), colors RAL 7035, RAL 7021, or RAL 9003
4	1 per divider unit	Rear door, St, perforated, RAL 7021, 180° hinge, 2-point locking and lever handle (key and numeric code), colors RAL 7035, RAL 7021, or RAL 9003
5	2 per divider unit	Cable channels (left, right)
6	2 per divider unit	Depth member for fixing shelf dividers and 19" profiles
7	4 per divider unit	19" panel, St, RAL 7021, with EIA perforation, depth-adjustable in 25 mm increments, standard fitting position 74 mm recessed
8	1 per divider unit	Base plate/shelf divider, can be fitted from inside
9	4	Adjustable foot
10	1	Earthing (GND) kit, fitted
