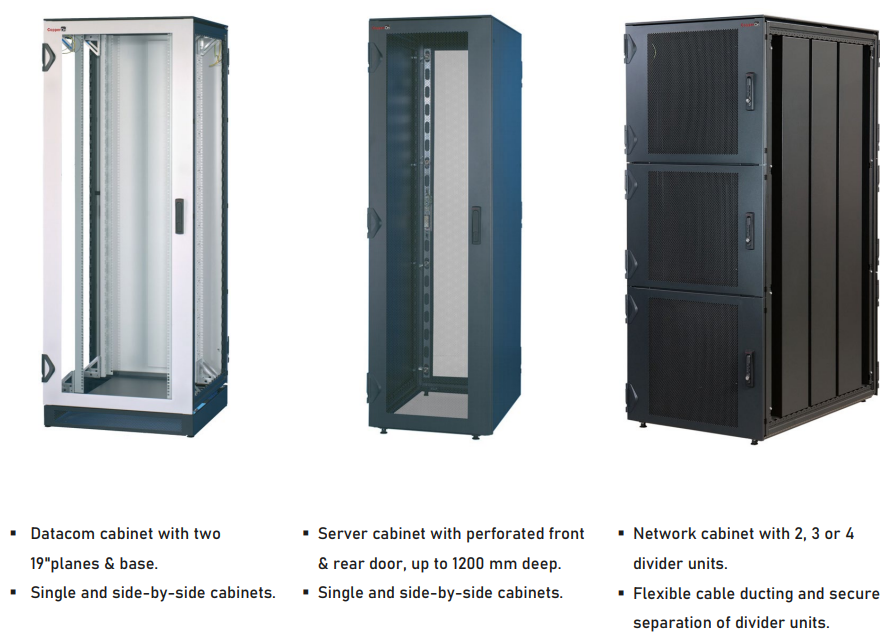

The more complex and demanding the conditions in which your IT infrastructure operates, the greater the demands that need to be met by an individually adaptable server or network cabinet.
|
Item |
Qty |
Description |
|

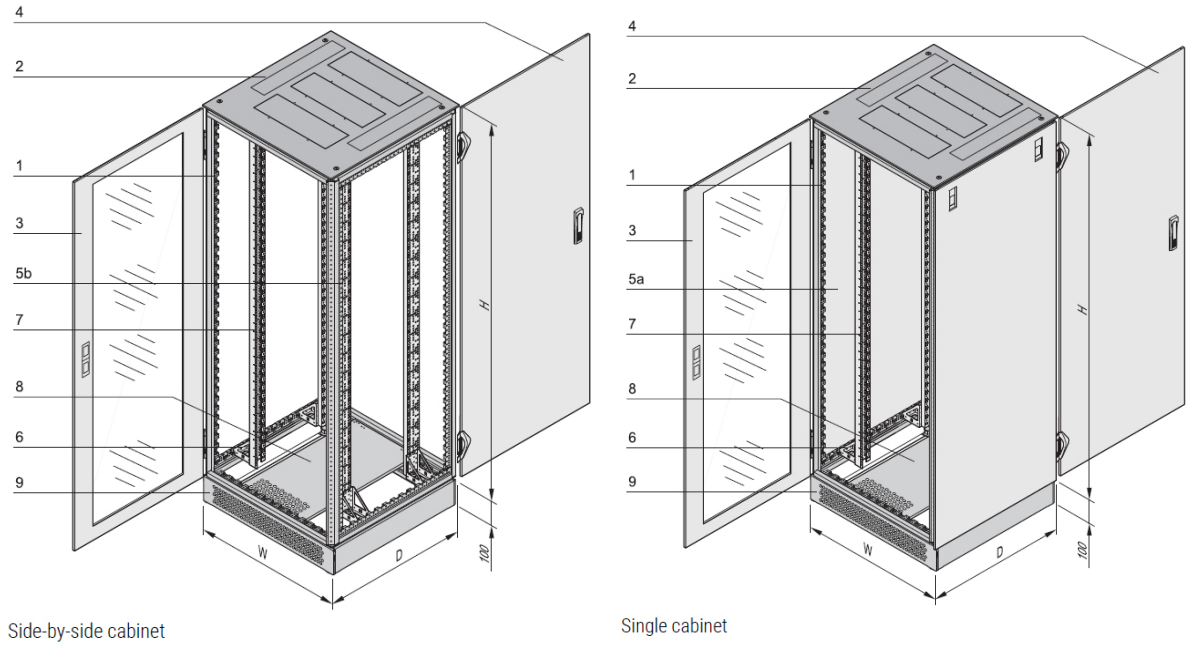

1 |
1 |
Welded basic frame (Slim-Line) from steel profiles, RAL 7021 |
|
2a |
1 |
From cabinet height 42 U/47 U: Top cover, St, RAL 7021 with prepunched perforation for subsequent assembly of brush strip, perforated cover plate or fan tray |
|
2b |
1 |
Cabinet height 24 U: Top cover, St, RAL 7021, without cut-out zone |
|
3 |
1 |
Front door: frame St, RAL 7035, with safety glass 6 mm and 180° hinge, single point locking and lever handle (optionally with DIN profile half cylinder) |
|
4 |
1 |
Rear door, St, RAL 7035, with 180° hinge, single point locking and lever handle (optionally retrofittable with DIN profile half cylinder) |
|
5a |
2 |
Single cabinet: side panels, St, RAL 7035, with quick-release fastener |
|
5b |
1 |
Side-by-side cabinet: 1 side-by-side mounting kit |
|
6 |
4 |
Adaptor bracket for reduced width, St, finish AlZn, for assembly of 19" panel/slide mounts (only with 800 mm wide cabinets) |
|
7 |
4 |
19" panel/slide mount, St, RAL 7035, with EIA perforation (800 mm wide cabinets: assembled on the adaptor bracket for reduced width); 600 mm cabinet depth: distance to front door 50 mm; at 800 mm 150 mm, from 900 mm cabinet depth: 70 mm; depth-adjustable in 25 mm increments. |
|
8 |
1 |
Base plate for lateral cable ducting, St, RAL 7021, subsequent lateral assembly of brush strip possible |
|
9 |
1 |
Base/plinth, St, RAL 7021, height 100 mm with front and rear ventilation trim, mounted base/plinth trims, integrated feet |
|
10 |
1 |
GND/earthing kit, assembled |

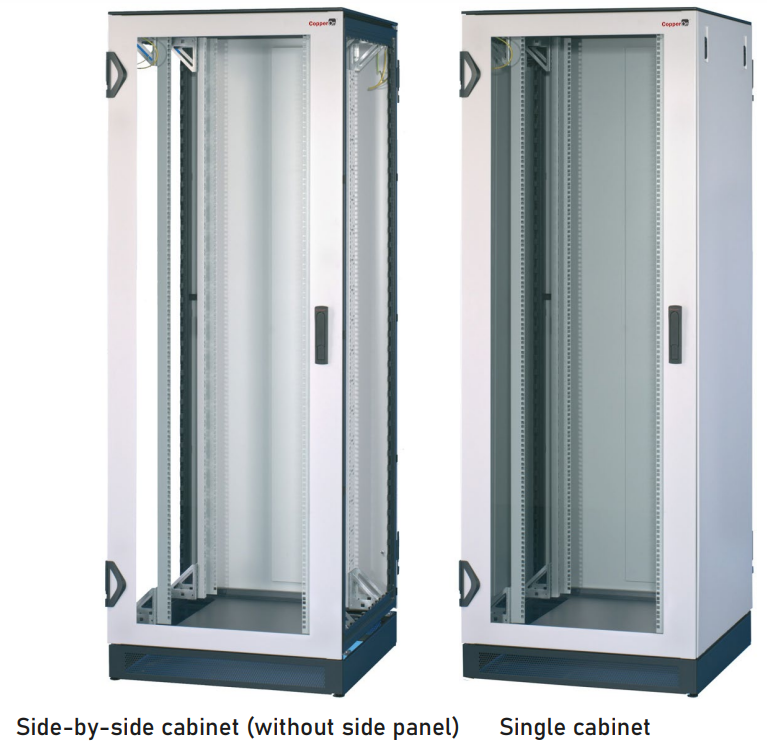

The 24 U cabinet has a top cover without pre punched perforation (not suitable for retrofitting with brush strips, fan tray, etc.)
|
Height |
Height H |
Width W |
Depth D |
Side-by-side cabinet |
Single cabinet |
|
U |
mm |
mm |
mm |
Part No. |
Part No. |
|
24 |
1200 |
600 |
600 |
12413-012 |
12413-011 |
|
24 |
1200 |
600 |
800 |
12413-014 |
12413-013 |
|
24 |
1200 |
600 |
900 |
12413-016 |
12413-015 |
|
24 |
1200 |
600 |
1000 |
12413-018 |
12413-017 |
|
24 |
1200 |
800 |
600 |
12413-020 |
12413-019 |
|
24 |
1200 |
800 |
800 |
12413-022 |
12413-021 |
|
24 |
1200 |
800 |
900 |
12413-024 |
12413-023 |
|
24 |
1200 |
800 |
1000 |
12413-026 |
12413-025 |
|
|
|
|
|
|
|
|
42 |
2000 |
600 |
600 |
14213-012 |
14213-011 |
|
42 |
2000 |
600 |
800 |
14213-014 |
14213-013 |
|
42 |
2000 |
600 |
900 |
14213-016 |
14213-015 |
|
42 |
2000 |
600 |
1000 |
14213-018 |
14213-017 |
|
42 |
2000 |
800 |
600 |
14213-020 |
14213-019 |
|
42 |
2000 |
800 |
800 |
14213-022 |
14213-021 |
|
42 |
2000 |
800 |
900 |
14213-024 |
14213-023 |
|
42 |
2000 |
800 |
1000 |
14213-026 |
14213-025 |
|
|
|
|
|
|
|
|
47 |
2200 |
600 |
600 |
14713-012 |
14713-011 |
|
47 |
2200 |
600 |
800 |
14713-014 |
14713-013 |
|
47 |
2200 |
600 |
900 |
14713-016 |
14713-015 |
|
47 |
2200 |
600 |
1000 |
14713-018 |
14713-017 |
|
47 |
2200 |
800 |
600 |
14713-020 |
14713-019 |
|
47 |
2200 |
800 |
800 |
14713-022 |
14713-021 |
|
47 |
2200 |
800 |
900 |
14713-024 |
14713-023 |
|
47 |
2200 |
800 |
1000 |
14713-026 |
14713-025 |
