• Static load-carrying capacity at full extension 70 kg.
• Mounting height 2 U, for mounting on four 19" panel/slide mounts
• Incl. telescopic slides.
• Locking with T-bar lock possible.
• Hammer head perforation to fix cable ties.
• 2 versions:
• Full depth.
• Depth shortened by 100 mm for rear cable ducting.

Delivery Includes

Order Information

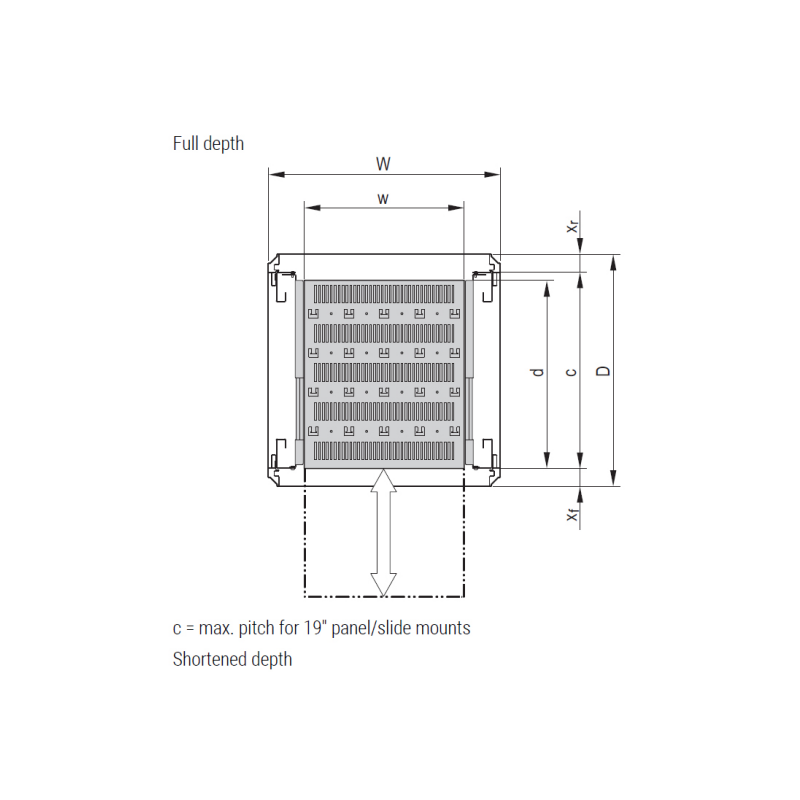

Full depth

For cabinet depth mm	Usable surface w x d mm	xf mm	C mm	RAL 7035 Part No.	RAL 7021 Part No.
600	405 x 482	50	500	27830-357	27830-212
800	405 x 482	150	500	27830-358	27830-213
Item 4 T-bar lock for 1 telescopic shelf (can be mounted right or left), 1 piece					27830-214
GND/earthing for telescopic 19" shelf PU 1 kit					27830-216

Order Information

Shortened by 100 mm

For cabinet depth mm	Usable surface w x d mm	xf mm	C mm	RAL 7035 Part No.	RAL 7021 Part No.
600	405 x 382	50	500	27830-351	27830-223
800	405 x 382	150	500	27830-353	27830-224
Item 4 T-bar lock for 1 telescopic shelf (can be mounted right or left), 1 piece					27830-225
GND/earthing for telescopic 19" shelf PU 1 kit					27830-226
