Item |
Qty |
Description |
|
1 |
1 |
Fan tray, RAL 7021 |
|
2 |
3 |
Axial fan 230 VAC, fully wired, Connects via UTE plug - IEC 60320-C12 socket |
|
3 |
3 |
Protective grille |
|
4 |
1 |
Assembly kit |
|
Description |
Qty/PU (piece) |
Part no. |
|

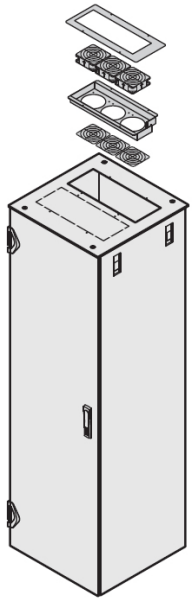

Fan unit with 3 fans |
1 |
25105-130 |
|
Fan with grille, 230 VAC, 38x 119 x 119 mm, at 50 Hz, 162 m3/h, 1 piece |
25105-136 |
|
|
Thermostat with mains cable 230 VAC (UTE plug/ IEC 60320 C13 socket), adjustment range 0 ... 60°C, 1 piece |
25185-453 |
|
|
Frequency |
50 Hz |
60 Hz |
|
Voltage |
230 VAC |
230 VAC |
|
Airflow volume |
162 m3/h |
192 m3/h |
|
Noise pressure level |
37 dB(A) |
41 dB(A) |
|
Max. static pressure |
73 PA |
88 PA |
|
Max. ambient temperature |
+70 °C |
+70 °C |
|
Power consumption |
15 W |
14 W |
