Compliant with ANSI/EIA RS-310-D, DIN41497 Part 1, IEC297-2, DIN41494 Part 7, and GBIT3047.2-92 Standards.
IP20
SPCC Cold Rolled Steel
Thickness: 2.0mm, 1.2mm, 1.0mm
Powder Coating
800kg
Mounting Profile: 2.0mm, Others: 1.2 – 1.5mm
|
SN |
Specification |
Quantity |
Unit |
Material |
Surface Finish |
Remark |
|
1 |
Frame |
2 |
Piece |
SPCC cold rolled steel t1.0 |
Powder Coated |
|
|
2 |

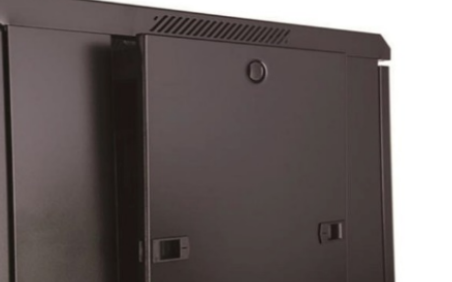

Side panel |
2 |
Piece |
SPCC cold rolled steel t1.0 |
Powder Coated |
|
|
3 |
Top cover |
1 |
Piece |
SPCC cold rolled steel t1.0 |
Powder Coated |
|
|
4 |

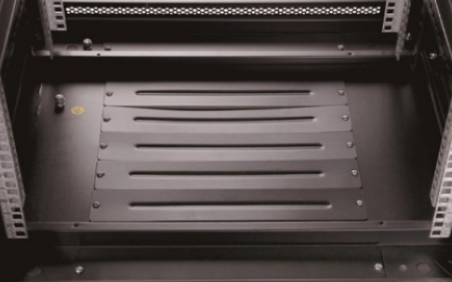

Bottom panel |
1 |
Piece |
SPCC cold rolled steel t1.0 |
Powder Coated |
|
|
5 |
Mounting profile |
4 |
Piece |
SPCC cold rolled steel t1.0 |
|
|
|
6 |
Mounting rail |
4/6 |
Piece |
SPCC cold rolled steel t1.0 |
Powder Coated |
|
|
7 |

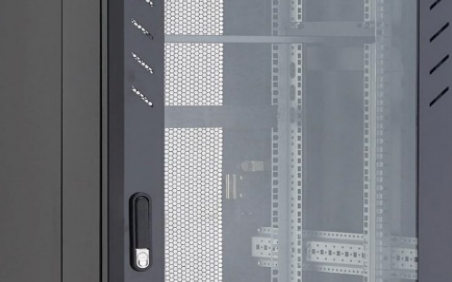

Front door |
1 |
Piece |
5MM toughened glass door/SPCC t1.2 |
Powder Coated |
|
|
8 |
Back door |
1 |
Piece |
Single open mesh vented door t1.2 |
Powder Coated |
|
|
9 |
Castors |
4 |
Piece |
|
|
|
|
10 |
Levelling feet |
4 |
Piece |
|
|
|
|
11 |
Lock |
2 |
Piece |
|
|
with 2 keys |
|
12 |
M6 Square nut |
30 |
Piece |
Steel |
Color Zinc |
|
|
13 |
M6 B-head screw |
30 |
Piece |
Steel |
Color Zinc |
|
|
14 |
Allen wrench |
|
Piece |
Steel |
Color Zinc |
|
|
Model |
Width (mm) |
Depth (mm) |
Height (U) |
Cabinet Color |
|||||
|
CS |
Glass front door, vented rear door |
6 |
600 |
6 |
600 |
18 |
18U |
1 |
Black |
|
CS2 |
Glass front door, solid rear door |
8 |
800 |
8 |
800 |
22 |
22U |
2 |
Gray |
|
CS3 |
Vented front door, vented rear door |
|
0 |
1000 |
27 |
27U |
|
||
|
|
32 |
32U |
|||||||
|
37 |
37U |
||||||||
|
42 |
42U |
||||||||
|
47 |
47U |
||||||||
|
Part No. |
Description |
|
CS2.8842.1 |

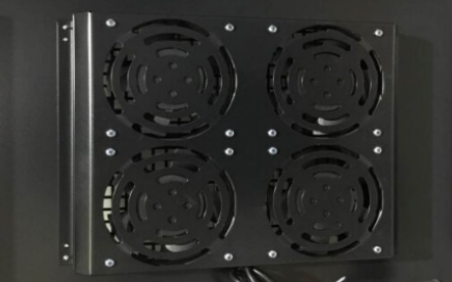

42U rack cabinet, 800mm x 800mm, glass front door, solid rear door, removable side panels, two vertical cable management, ventilation fans, shelves, leveling feet, castors, black |
