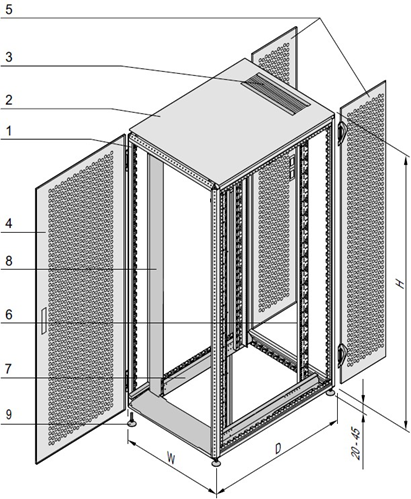

Item

QTY

Description

1

1

Welded basic frame (Slim-Line) from steel profiles, RAL 7021

2

1

Flat top cover, St, RAL 7021, with pre punched perforation for

retrofitting the brush strip, perforated cover plate (width 600 mm) or perforated and lateral fan tray (width 800 mm)

3

1

Brush strip for 600 mm and 800 mm widths.

4

1

Front door, perforated, St, with 180° hinges, 3-point locking and lever handle (option to upgrade with DIN profile half cylinder),

colors RAL 7035, RAL 7021, or RAL 9003.

5

1

Rear double door, perforated, St, with 180° hinges, 3-point locking

and lever handle (option to upgrade with DIN profile half cylinder), colors RAL 7035, RAL 7021, or RAL 9003.

6

4

19" panel/slide mounts, St, mounted in 740 mm intervals, with U

marking, color RAL 7035, RAL 7021, or RAL 9003.

7

4

Cross member, St (to accept 19" panel/slide mounts in 800 mm

wide cabinets)

8

1

Baffle kits to separate the front side of 19" plane, St, 1.5 mm, color

RAL 7035, RAL 7021, or RAL 9003

9

4

Adjustable foot

10

1

Earthing (GND) kit, fitted

Part Number

Capacity

Height (H)

Width (W)

Depth (D)

RAL 7021

RAL 7035

RAL 9003

U

mm

mm

mm

14213-075

14223-075

14233-075

42

2000

600

1000

14213-085

14223-085

14233-085

42

2000

600

1200

14213-076

14223-076

14233-076

42

2000

800

1000

14213-086

14223-086

14233-086

42

2000

800

1200

14713-079

14723-079

14733-079

47

2200

600

1000

14713-089

14723-089

14733-089

47

2200

600

1200

14713-080

14723-080

14733-080

47

2200

800

1000

14713-090

14723-090

14733-090

47

2200

800

1200

15213-083

15223-083

15233-083

52

2450

600

1000

15213-093

15223-093

15233-093

52

2450

600

1200

15213-084

15223-084

15233-084

52

2450

800

1000

15213-094

15223-094

15233-094

52

2450

800

1200

RAL 7021

RAL 7035

RAL 9003

Stone Gray

Light Gray

Signal White
