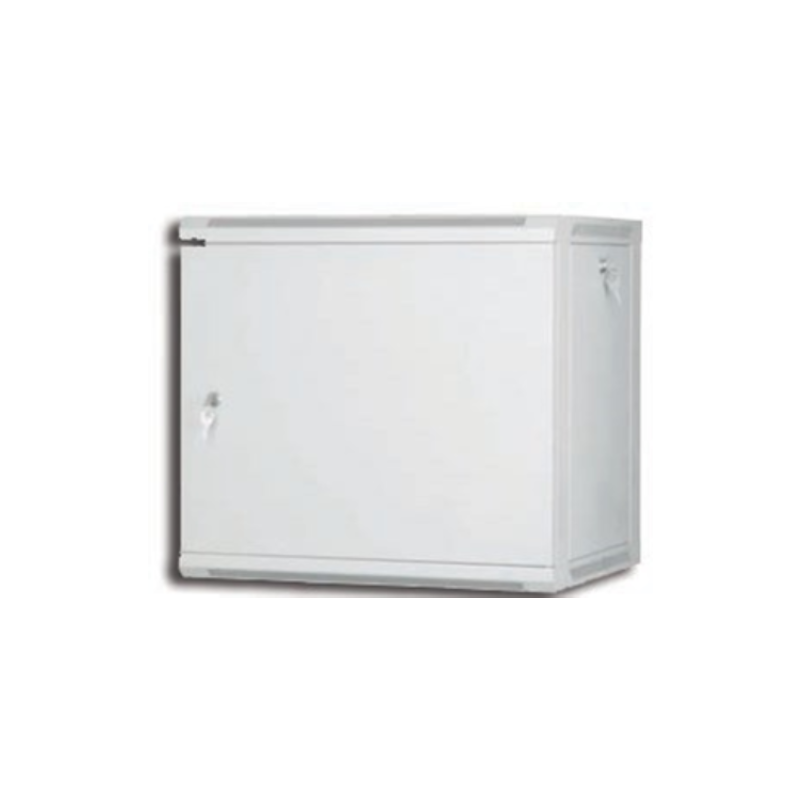

Single Section Wall Mounted Cabinets

Compliant with ANSI / EIA RS-310-D, DIN41491, IEC297-2, DIN41491 Part 7, and GB/T3047.2-92 Standards.

Features

• Welded frame, reliable structure
• Floor standing or wall mounting installations
• Adjustable feet and heavy-duty castors are optional
• Easy mounting installation
• 19" standard installation
• Removable side panels with optional side locks
• Knock-out holes for entering cable from top cover and bottom panel
• 120mm fan (optional)
• Turning angle of front door is over 180 degrees

Materials

SPCC Cold Rolled Steel

Thickness: 2.0mm, 1.2mm, 1.0mm

Surface Finish

Degreasing, Phosphoric, Powder Coated

Thickness

Mounting Profile 2.0mm, Others: 1.2 – 1.5mm

Loading Capacity

60KG

Degree of Protection

IP20

Colors
