Slide Rails

Home
Data Center

Slide Rails

Cabinet Accessories

Description

For assembly on 19" panel/slide mounts
Assembly in 1 U increments (snap-in, bolt-on)
Wide support surface (48 mm)
2 versions
Static load-carrying capacity 25 kg per pair
Static load-carrying capacity 100 kg per pair

Delivery Includes

Item	Qty	Description
1	-	Slide rail, AlZn, 1.5 mm (Load capacity 25 kg), or 2.5 mm (Load-carrying capacity 100 kg), zinc-plated
2	1	Assembly kit incl. GND/earthing

Order Information

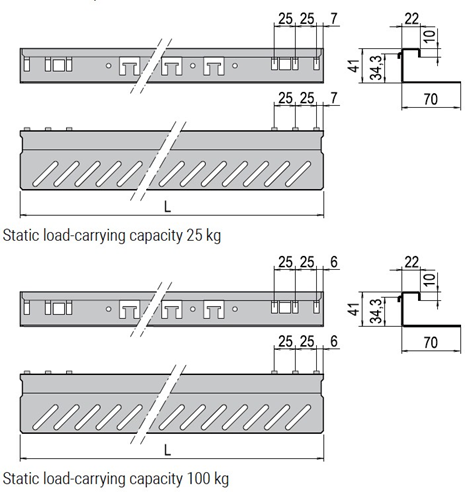

Static Load-Carrying Capacity 25 kg

For cabinet depth mm	xf mm	C mm	Length L mm	Qty/PU	Part No.
600, 800	50	500, 700	456	2	27631-035
600, 800	50	500, 700	456	10	27631-039
800	150	500	456	2	27531-035
800	150	500	456	10	27531-039
900, 1000, 1200	70	740	699	2	27731-037
900, 1000, 1200	70	740	699	10	27731-041

Static Load-Carrying Capacity 100 kg

For cabinet depth mm	xf mm	C mm	Length L mm	Qty/PU	Part No.
600, 800	50	500, 700	458	2	27630-071
600, 800	50	500, 700	458	10	27630-073
800	150	500	458	2	27530-071
800	150	500	458	10	27530-073
900, 1000, 1200	70	740	699	2	27130-075
900, 1000, 1200	70	740	699	10	27130-077
